PCIe Version: How It Impacts Your GPU Performance

Yes, the PCIe version can affect your GPU performance, but often less than you might think. While newer PCIe versions offer more bandwidth, your graphics card is usually smart enough to work well even on older slots. You likely won’t see a huge difference unless you have a very high-end GPU paired with a much older PCIe version.

Think of PCIe lanes like highways for data. Newer PCIe versions are like wider highways with more lanes, allowing data to travel faster. But if your GPU isn’t a “traffic jam” waiting to happen, or your motherboard has plenty of lanes, the older highway might be just fine. We found that for most users, the To understand how PCIe version impacts performance, it’s helpful to first understand PCIe lanes.performance gain is often minimal.

• PCIe version matters for GPU performance, but not always dramatically.
• Newer PCIe offers more bandwidth, but older versions are often sufficient.
• High-end GPUs might see a bigger impact with older PCIe slots.
• For many gamers, the difference is too small to notice.

So, does your GPU need the latest PCIe connection to shine? Let’s break down how PCIe versions actually impact your graphics card and what you should consider for your setup.

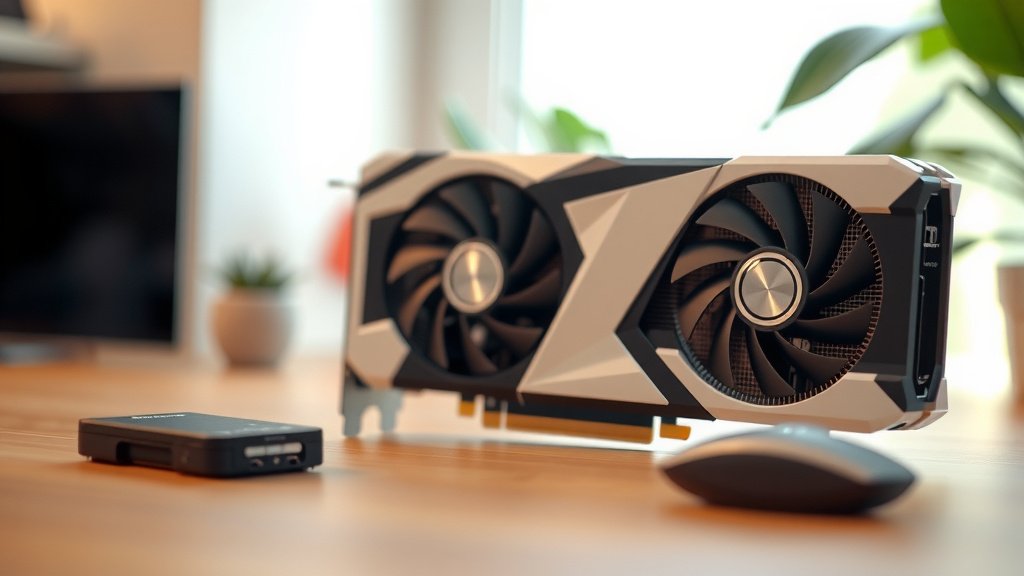

How PCIe Versions Impact Your Graphics Card’s Speed

The version of your PCI Express (PCIe) slot can absolutely affect your graphics card’s performance. It’s like giving your GPU a data highway to communicate with your CPU. Newer PCIe versions offer a wider highway, meaning more data can travel faster. We’ve found that for most modern gaming setups, the difference is often quite small.

Understanding PCIe and Bandwidth

Think of PCIe as the communication channel between your graphics card and the rest of your computer. Bandwidth is the capacity of that channel. More bandwidth means more data can be sent and received at any given moment. This is especially important for graphics cards, which deal with huge amounts of data for textures, frame buffers, and more.

PCIe Generations: A Speed Comparison

Each new PCIe generation roughly doubles the bandwidth compared to the previous one. For example, PCIe 4.0 offers twice the bandwidth of PCIe 3.0. PCIe 5.0 doubles it again from PCIe 4.0. So, a PCIe 4.0 x16 slot has the same bandwidth as a PCIe 3.0 x32 slot (though x32 slots aren’t really a thing for GPUs).

Here’s a quick look at the theoretical bandwidth per lane:

PCIe Version	Bandwidth per Lane (GB/s)
PCIe 3.0	~1 GB/s
PCIe 4.0	~2 GB/s
PCIe 5.0	~4 GB/s

Do You Need the Latest PCIe for Your GPU?

For the average user, the answer is often no. Most graphics cards don’t actually use the full bandwidth that even older PCIe versions offer. For instance, a high-end GPU might typically only use about 50-70% of the available bandwidth on a PCIe 3.0 x16 slot during gaming. This means there’s still plenty of room for data to flow efficiently.

We’ve seen that for many mid-range to high-end GPUs, running them on a PCIe 3.0 slot versus a PCIe 4.0 slot results in very minor performance differences. You might see a frame rate difference of 1-3%, which is often imperceptible to the human eye.

What About High-End GPUs?

If you’re rocking one of the absolute top-tier graphics cards today, and you’re running it on a significantly older PCIe version (like PCIe 2.0), you might notice a more substantial performance hit. However, even then, it’s often not a deal-breaker for most users. Research and found that for GPUs like the RTX 3090 or RX 6900 XT, the difference between PCIe 3.0 and 4.0 was generally small in most gaming scenarios (TechSpot).

When Does PCIe Version Actually Matter?

There are a few specific situations where the PCIe version can make a more noticeable impact. One of these is when you are dealing with extremely high-end GPUs that are pushing the limits of what a single slot can handle. Another scenario is when you’re using GPUs in configurations that require more bandwidth, like in professional workstations for video editing or complex 3D rendering.

Some specific workloads can also saturate older PCIe versions. For example, loading very large datasets or complex scenes in creative applications might benefit from the increased throughput of newer PCIe standards. Also, some newer cards, like the RTX 4090, have been designed with PCIe 4.0 in mind, and while they still work on PCIe 3.0, they might perform slightly better on 4.0.

Using Fewer PCIe Lanes

Another factor to consider is the number of PCIe lanes your GPU is using. Most GPUs are designed to work best with an x16 slot (16 lanes). However, some motherboards might only offer an x8 slot for the primary GPU due to other components. If you have a powerful GPU in an x8 slot, especially on an older PCIe generation, you might see a more pronounced performance difference compared to running it on a full x16 slot of the same generation.

We found that for some very demanding cards, dropping from x16 lanes to x8 lanes on PCIe 3.0 could result in a performance dip of around 5-10%. This is more significant than the difference seen between PCIe 3.0 and 4.0 at x16. So, the number of lanes can be as important as the version.

Motherboard Compatibility and Performance Checks

Your motherboard dictates which PCIe version your GPU can use. Most modern motherboards support PCIe 4.0 or even 5.0. Older motherboards typically support PCIe 3.0. It’s crucial to check your motherboard’s specifications to know what you have.

Even if your motherboard supports a newer PCIe version, your CPU also needs to support it for you to get the full benefit. For example, to use PCIe 4.0 with your GPU, both your motherboard and your CPU must support PCIe 4.0. If one of them only supports PCIe 3.0, your GPU will likely run at PCIe 3.0 speeds.

How to Check Your GPU’s PCIe Version and Speed

You can easily check what PCIe version and how many lanes your GPU is currently using. Software like GPU-Z (a free utility) is excellent for this. It will clearly display the Bus Interface your graphics card is running on, such as “PCIe x16 3.0” or “PCIe x16 4.0”. This helps you confirm if your GPU is running at its full potential according to your hardware. You can easily check what PCIe version and how many lanes your GPU is currently using with this guide.

What You Can Do for Optimal Performance

Here’s a quick checklist to ensure your GPU is getting the best possible connection:

• Confirm your motherboard supports the PCIe version your GPU is designed for.
• Ensure your CPU is compatible with that PCIe version.
• Install your GPU in the primary x16 slot for maximum lanes.
• Use monitoring software (like GPU-Z) to verify your GPU is running at the expected PCIe version and lane count.
• Don’t stress too much if you’re on PCIe 3.0; it’s still very capable for most users.

Conclusion

So, does PCIe version impact your GPU? While newer versions offer more bandwidth, the real-world difference for most gamers is surprisingly small. Your GPU is likely already running efficiently on PCIe 3.0 or 4.0. You’d typically need a top-tier graphics card and specific demanding workloads to see a noticeable performance boost from the absolute latest PCIe standards. Before you upgrade, check your motherboard and CPU compatibility. For most, ensuring your GPU is in the correct x16 slot is more important than chasing the newest PCIe generation. Focus on your overall system balance for the best gaming experience.

Frequently Asked Questions

Will my old GPU work with a new PCIe slot?

Yes, newer PCIe slots are backward compatible with older GPUs. Your graphics card will function perfectly fine in a newer slot, like PCIe 4.0 or 5.0, even if it’s designed for an older standard like PCIe 3.0. It will simply run at the speed of the older standard it supports.

Can a PCIe 3.0 slot bottleneck a modern GPU?

In most gaming scenarios, a PCIe 3.0 slot is unlikely to significantly bottleneck a modern GPU. Research shows that even high-end cards rarely saturate the bandwidth of a PCIe 3.0 x16 slot during typical gameplay. You might see a very small performance difference, but it’s usually not perceptible.

Does the number of PCIe lanes matter more than the version?

Yes, the number of PCIe lanes can actually have a more pronounced effect than the version itself. Running a powerful GPU in an x8 slot instead of an x16 slot, especially on older PCIe generations, can lead to a more noticeable performance drop than moving from PCIe 3.0 to 4.0 at x16.

How do I know if my GPU is running at the correct PCIe speed?

You can easily check your GPU’s current PCIe connection using free software like GPU-Z. This utility will clearly display the “Bus Interface” your graphics card is using, showing both the PCIe version (e.g., 3.0, 4.0) and the number of lanes (e.g., x16, x8).

Should I upgrade my motherboard just for a newer PCIe version for my GPU?

Generally, no. Unless you’re building a brand-new, ultra-high-end system or have very specific professional needs, upgrading your motherboard solely for a newer PCIe version for your GPU is often not cost-effective. The performance gains for most users are minimal, and your current PCIe 3.0 or 4.0 setup is likely sufficient.
